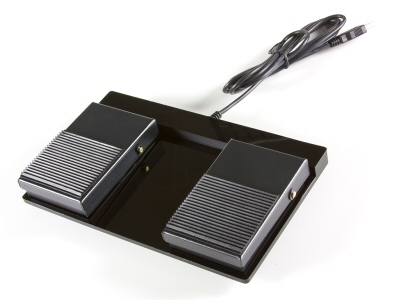

Scythe USB Double Foot Switch II
The
second version of mouse and keyboard operating USB Foot Switch. Optical
instead of mechanical switch. Friction noise highly reduced with
rubber. The USB Foot Switch 2 provides a 3 mm shorter key stroke
allowing less force for switching.
Improvements compared to first version:
1) Noise reduction
Better
noise behavior. The reasons for the noise in the first version were the
mechanical switch, which was changed to an optical switch and a
friction sound coming from the metal cover, which could be strongly
reduced by attaching rubber. Altogether noise has been highly improved
for the USB Foot Switch 2.
2) Shorter key stroke
Instead of an
8mm key stroke the new Foot Switch 2 has an shorter, 5mm key stroke.
Therefore less pressure (power) is needed to handle the switch. Less
fatiguing, especially in case of frequent, repeated use.
Included software provides the opportunity to bind all keys:
Left and right mouse click, double click, all keyboard keys as well as ctrl / alt shortcuts can be bound.
Functions Unable to Perform by this Product:
Mouse
scroll, 4th or later button of mouse, Multimedia key functions, Keys
not used by 101/102 English keyboard. Depending on your usage
environment, some key features may not work (Example: F1 key alone
cannot be appointed).
Manual:
ftp://ftp.scythe-eu.com/Data-Sheets/Accessory/USB-Foot-Switch-2-USB-FS-2/USB-Foot-Switch-2_ENG.pdf
Model Name:
USB Foot Switch 2 Double
Model Number:
USB-2FS-2
Weight:
570 g / 20.10 oz. (Double)
Dimensions Overall:
130 x 210 x 37 mm / 5.11 x 8.26 x 1.46 in (Double)
Dimensions Switch:
120 x 67 x 34 mm / 4.72 x 2.64 x 1.34 in (Double)
Cable Length:
approx. 180 cm / 70.87 in
Key Stroke:
approx. 5 mm / 0.1969 in
Compatible OS:
Windows XP/VISTA/7/8
Once set up on a Windows OS using the supplied software, USB Foot Switch II can be used on Mac and Linux operating systems.
